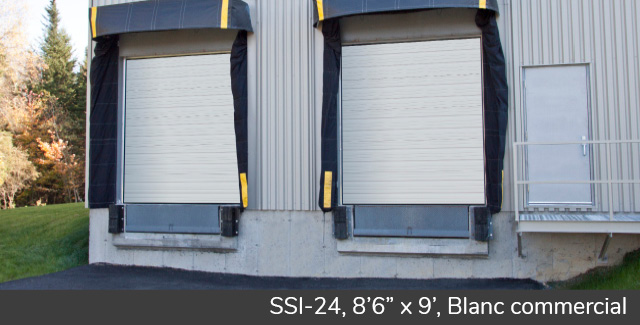

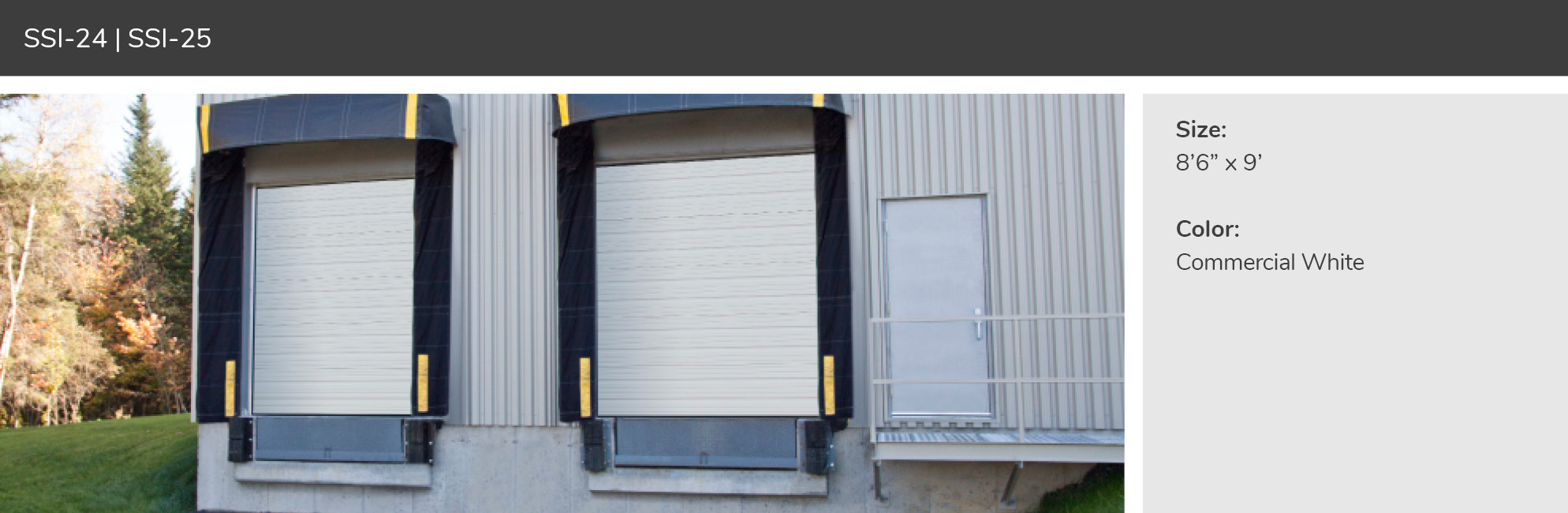

SSI-24, SSI-25 (Replace the TG-6200 model)
- Steel
- Thickness: 2"
- Colour: White
- 3 layers, polystyrene sandwich door
- Panel design: Deep Grooves
- R-8.7 insulation
IMPORTANT - These models are not available in Canada for now.
Important - Product names
- The TG‑6200 garage door model is no longer available and has been replaced by the SSI‑24 and SSI‑25 models.
- The SSI‑24 and SSI‑25 garage door models are part of the Mid‑America series.
Features and benefits
A

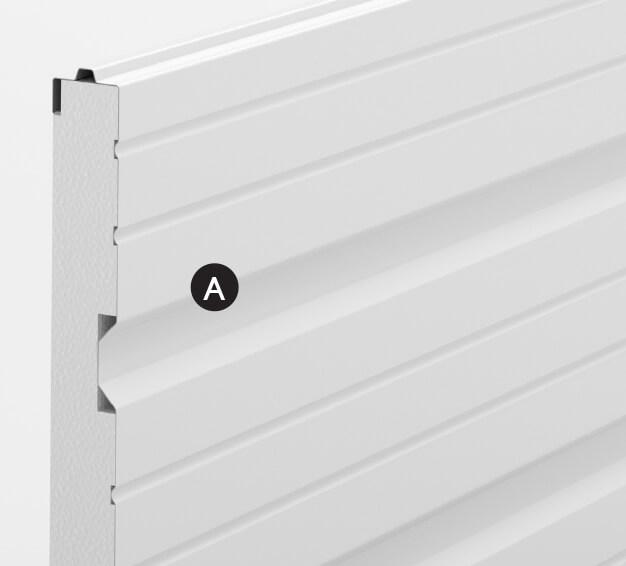

Deep-grooved steel wall
- Providing more strength and additional bending resistance, our sections are made with ½“ deep and 2“ wide horizontal grooves with alternating smaller grooves.
- SSI-24 Heavy Duty construction model and SSI-25 Medium Duty construction model are built with galvanized steel and factory applied white baked-on finish.
B
Polystyrene insulation
- CFC-free contoured polystyrene core of our sections is bonded with polyurethane reactive hot melt glue to obtain energy efficiency.
C

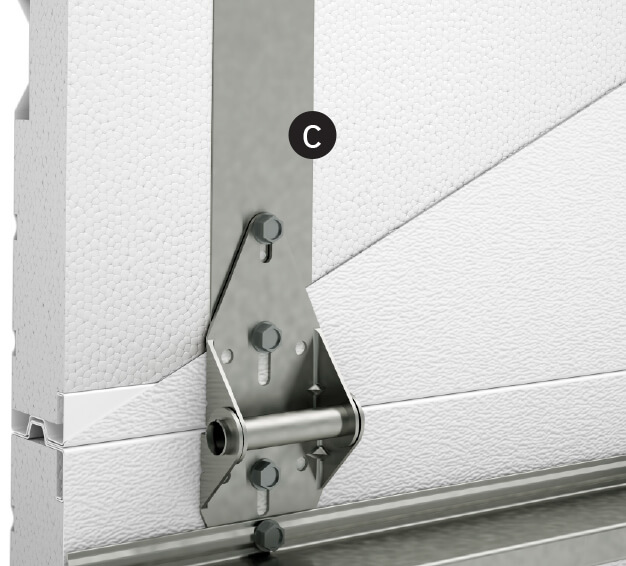

Full-length reinforcing plates
-
20-gauge hot dipped galvanized steel stiles running the full height of the section are attached to the interior face to ensure a more rigid section and also pre-punched with extruded holes for hinge attachment.
Our technical department
We can provide budgetary pricing for your projects and your customers’ ones.
Panel construction
1
Hot-dipped galvanized steel walls
- Heavy Duty Model SSI-24: 24‑gauge exterior and 26‑gauge interior steel skin
- Medium Duty Model SSI-25: 25‑gauge exterior and 26‑gauge interior steel skin
- Baked-on polyester paint. Can be repainted
- Smooth finish on exterior side and stucco finish on interior side of the door
- Same quality of corrosion-resistant steel for interior and exterior faces
2
2” (50 mm) CFC-free continuous sculpted polystyrene board bonded between steel faces ensures a thermal-resistance rating of R-8.7 (RSI 1.7 or k=0.558 W/m2K).
3
Sections are made with ½” (13 mm) deep and 2” (50 mm) wide grooves providing more strength to the door.
4
Tongue & groove joints between sections that fit seamlessly.
5
Continuous astragal bottom weatherstripping made of U‑shaped flexible vinyl and held in place by an aluminum retainer provides additional reinforcement.
6
20-gauge full-length galvanized steel reinforcing plates placed inside the door provide a rock solid base for attaching hinges and struts.
Door weight:
SSI-24: 2.35 lb/ft2 (11.5 kg/m2)
SSI-25: 2.17 lb/ft2 (10.6 kg/m2)
Panel design

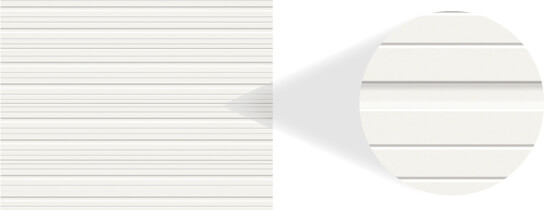

Deep Grooves
1⁄2” deep, 2” wide
Sizes
| Widths
In 1" (25 mm) increments |
From 5' to 24'2" (1.5 m to 7.4 m) |
| Heights
In 3" (76 mm) increments |
From 6' to 18' (1.8 m to 5.5 m) |
Sizes
Warranty (Limited)
- 10 years against any perforation of steel due to rust
- 1 year on other door components
Colour
White
The accuracy of colour on the website may vary depending on your screen settings. To see the true colour, please contact your local Garaga dealer for a sample.
Windows

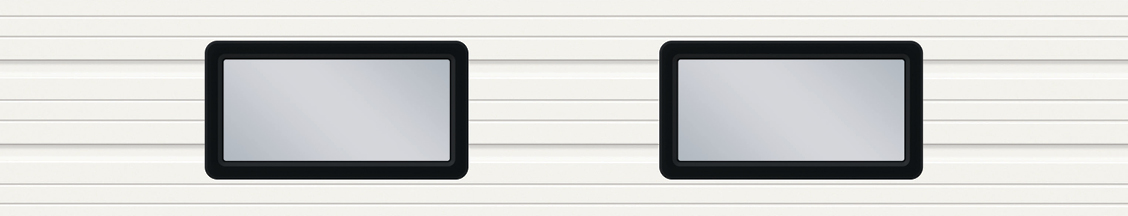

Standard windows
Available for doors:
SSI-24
SSI-25
Sizes
24" x 6" (610 mm x 152 mm) or
25" x 13" (635 mm x 330 mm)
Glass
- Thermopane ½": Clear
- Single glass 1⁄8": Clear
Frame colours
White and Black
SSI-24 | SSI-25
Hardware
See details with your Garaga dealer.
Document to download
Technical drawings
Revit file SSI‑24 | SSI‑25 (.rfa file)
